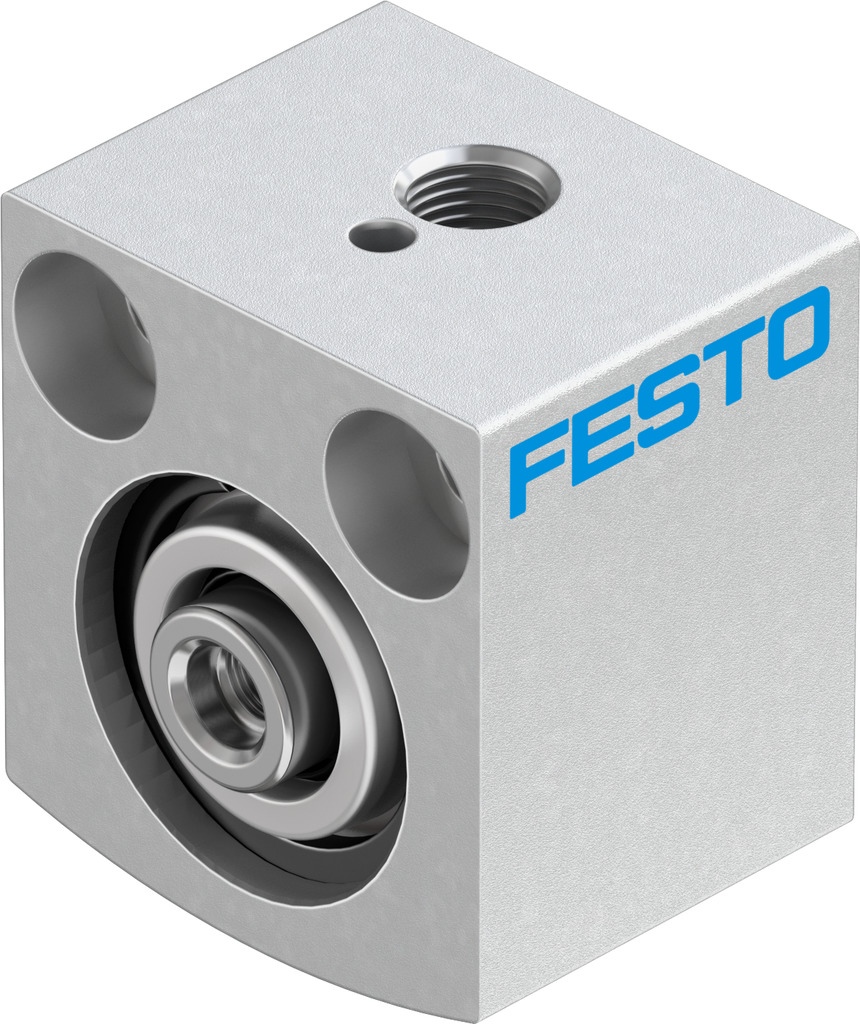

Tài liệu kỹ thuật
- Stroke
- 5 mm
- Piston diameter
- 12 mm
- Spring resetting force with piston rod in retracted position
- 4 N
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Single-acting
Pushing - Structural design
- Piston
Piston rod - Position sensing
- None
- Symbol
- 00991730
- Operating pressure
- 1.5 bar ... 10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Ambient temperature
- -20 °C ... 80 °C
- Theoretical force at 6 bar, advancing
- 61 N
- Moving mass
- 4.4 g
- Product weight
- 19 g
- Type of mounting
- Optionally:
With through-hole
With accessories - Pneumatic connection
- M5
- Note on materials
- Free of copper and PTFE
- Cover material
- Wrought aluminum alloy
Anodized - Seals material
- NBR
TPE-U(PU) - Housing material
- Wrought aluminum alloy
Anodized - Piston rod material
- High-alloy steel
