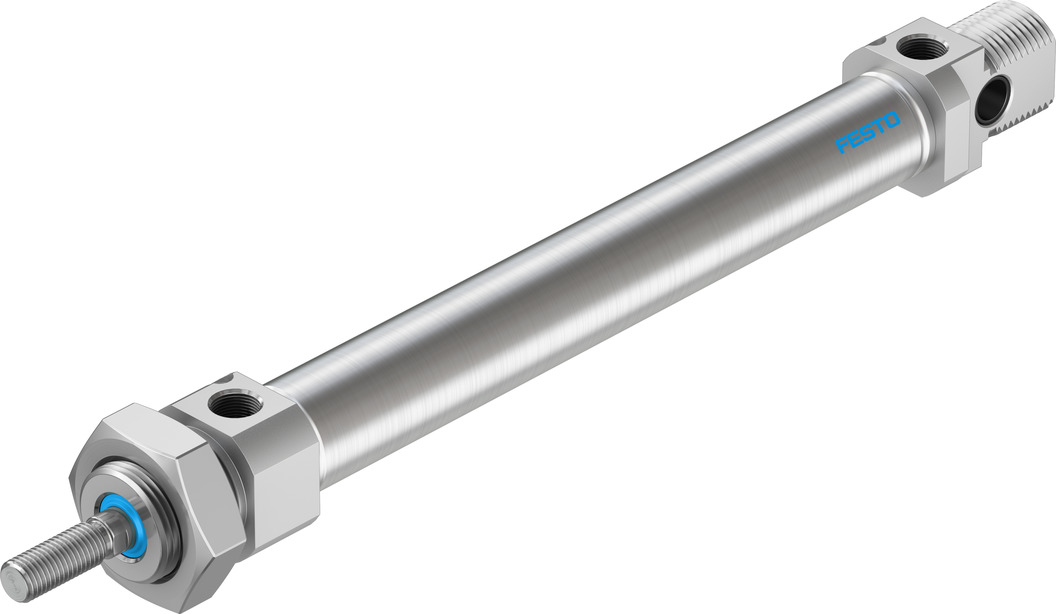

Stroke

125 mm

Piston diameter

20 mm

Piston rod thread

M8

Cushioning

Pneumatic cushioning, adjustable at both ends

Mounting position

Any

Conforms to standard

CETOP RP 52 P
ISO 6432

Piston rod end

External thread

Structural design

Piston
Piston rod
Cylinder barrel

Position sensing

For proximity sensor

Symbol

00991235

Variants

Piston rod at one end

Operating pressure

0.1 MPa ... 1 MPa

Operating pressure

1 bar ... 10 bar

Mode of operation

Double-acting

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

LABS conformity

VDMA24364-B1/B2-L

Ambient temperature

-20 °C ... 80 °C

Impact energy in the end positions

0.2 J

Cushioning length

15 mm

Theoretical force at 6 bar, retracting

158.3 N

Theoretical force at 6 bar, advancing

188.5 N

Moving mass at 0 mm stroke

44 g

Additional moving mass per 10 mm stroke

4 g

Basic weight with 0 mm stroke

186.8 g

Additional weight per 10 mm stroke

7.2 g

Type of mounting

With accessories

Pneumatic connection

G1/8

Note on materials

RoHS-compliant

Cover material

Wrought aluminum alloy
Plain anodized

Seals material

NBR
TPE-U(PU)

Piston rod material

High-alloy stainless steel

Material of cylinder barrel

High-alloy stainless steel
