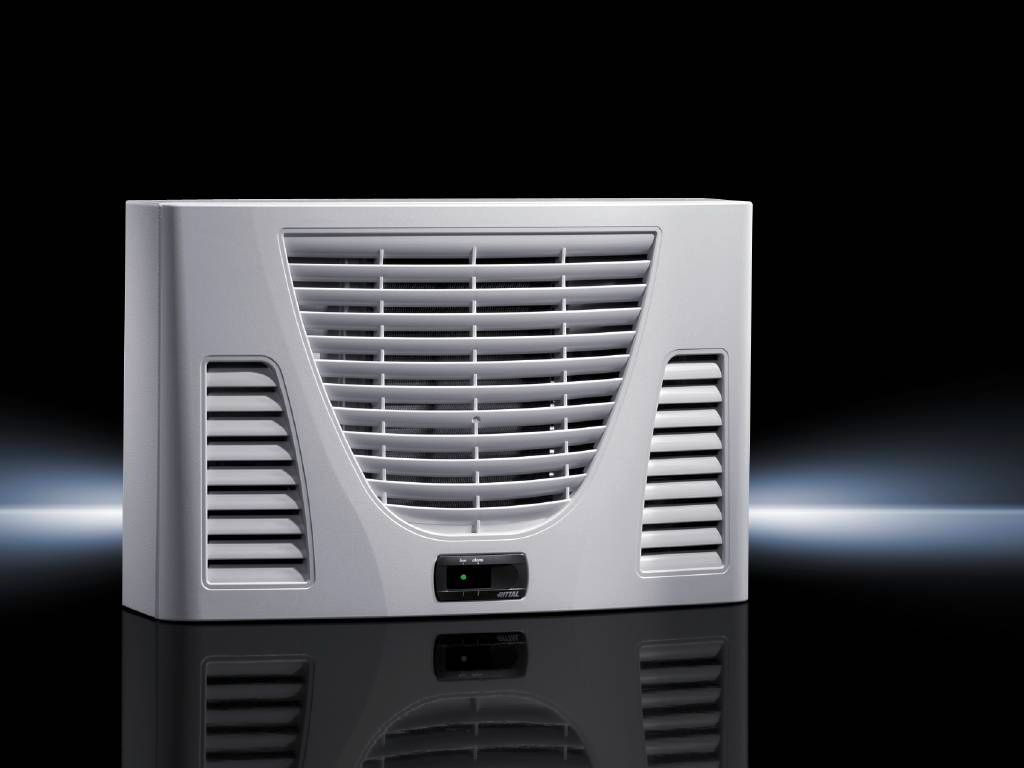

Description: Compact wall-mounted cooling units in horizontal format, with nano-coated condenser.

Material: Sheet steel

Colour: RAL 7035

Protection category IP to IEC 60 529: External circuit IP 34

Internal circuit IP 54

Supply includes: Nano-coated condenser

Fully wired ready for connection (plug-in terminal strip)

Drilling template

Assembly parts

Variant: wall-mounted

Total cooling output to DIN EN 14511: L 35 L 35 at 60 Hz: 0.38 kW

L 35 L 50 at 60 Hz: 0.23 kW

Air throughput (unimpeded air flow): External circuit: 300 m³/h

Internal circuit: 300 m³/h

Rated operating voltage: 115 V, 1~, 60 Hz

Dimensions:

Width: 525 mm

Height: 340 mm

Depth: 153 mm

Temperature control: Basic controller (factory setting +35 °C)

Temperature range: Operation (environment): +10 °C...+55 °C

Setting range: +30 °C...+55 °C

Refrigerant/cooling medium: Refrigerant: R134a

Quantity: 100 g

Global Warming Potential (GWP): 1430

CO₂ equivalent (CO₂e): 0.13 t

Power consumption Pel: L 35 L 35 at 60 Hz: 0.32 kW

L 35 L 50 at 60 Hz: 0.37 kW

Rated current max.: At 60 Hz: 4 A

Start-up current max.: At 60 Hz: 12 A

Miniature circuit-breaker/fuse: 10 A

Permissible operating pressure (p. max.): 25 bar
