Thông tin chi tiết sản phẩm
- Electrical actuationAP interface Individual connection Fieldbus I-Port IO-Link® Multi-pin
- Electrical I/O systemno
- Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
- Temperature of medium-5 °C ... 60 °C
- Ambient temperature-5 °C ... 60 °C
- Storage temperature-10 °C ... 60 °C
- Degree of protectionIP40 IP65 IP67 IP69K NEMA 4X
- Corrosion resistance class (CRC)2 - Moderate corrosion stress
- Vibration resistanceTransport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Shock resistanceShock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Operating pressure-0.09 MPa ... 1 MPa
- Operating pressure-0.9 bar ... 10 bar
- Pilot pressure MPa0.15 MPa ... 0.8 MPa
- Pilot pressure1.5 bar ... 8 bar
- Operating pressure for valve manifold with internal pilot air supply1.5 bar ... 8 bar
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- CE marking (see declaration of conformity)As per EU EMC directive As per EU RoHS directive
- UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
- KC charactersKC EMC
- CertificationRCM compliance mark c UL us - Recognized (OL)
- Certificate issuing authorityUL MH19482
- Note on materialsRoHS-compliant
- Seals materialHNBR NBR

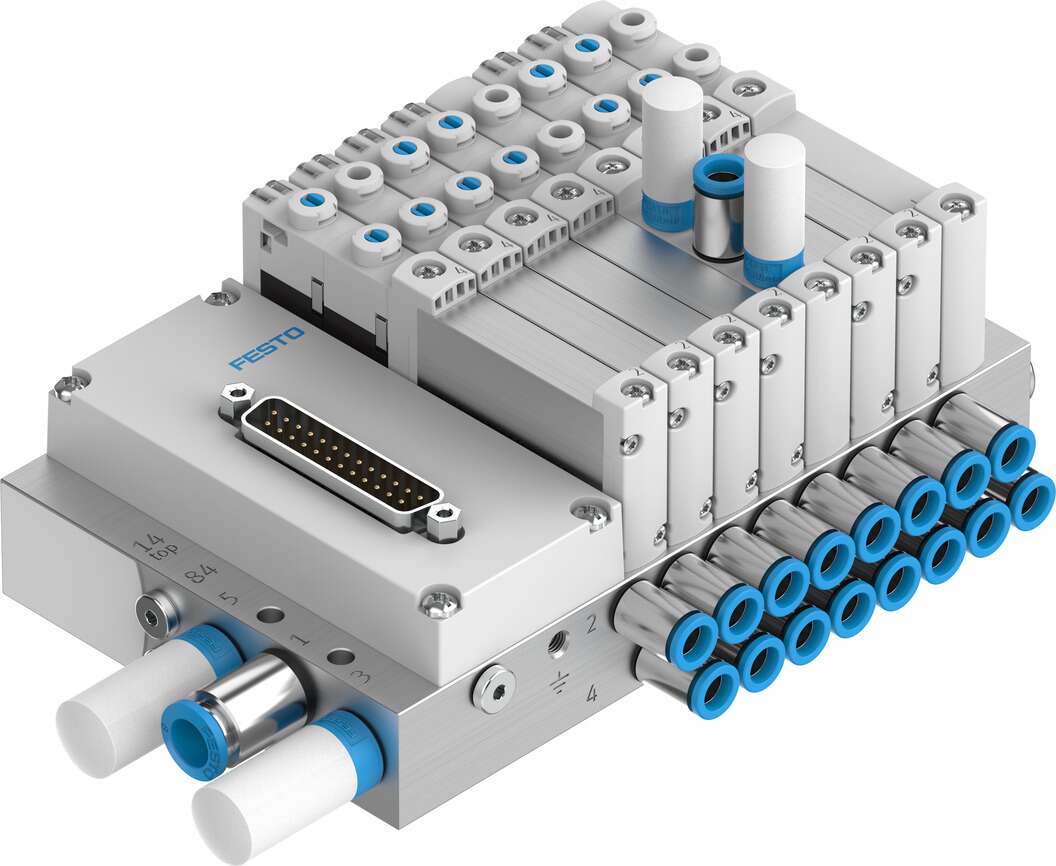

- Valve manifold designFixed grid
- Max. no. of valve positions24
- Max. no. of pressure zones13
- Actuation typeElectrical
- Valve function2x3/2, closed, monostable 2x3/2, open, monostable 2x3/2, open/closed, monostable 3/2, closed, monostable 3/2, open, monostable 5/2, bistable 5/2, monostable 5/3, pressurized 5/3, exhausted 5/3, closed
- Structural designPiston gate valve
- Sealing principleSoft
- Type of controlPilot-controlled
- Valve size18 mm
- Pilot air supply portExternal Internal
- Max. standard nominal flow rate330 l/min at 10 mm 630 l/min at 14 mm 1200 l/min at 18 mm
- Standard nominal flow rate130 l/min ... 1150 l/min
- Suitability for vacuumyes
- Exhaust air functionWith flow control option
- Pneumatic working portM5 M7 G1/8 G1/4 QS-3 QS-4 QS-6 QS-8 QS-10 QS-5/32 QS-1/8 QS-3/16 QS-1/4 QS-5/16 QS-3/8
- Pneumatic connection 1G1/8 G1/4 G3/8 QS-3 QS-4 QS-6 QS-8 QS-10 QS-12 QS-16 QS-1/4 QS-5/16 QS-3/8 QS-1/2
- Pilot air port 12/14G1/8
- Signal status displayLED
- Nominal operating voltage DC24 V
- Permissible voltage fluctuations+/- 10 % +/- 25 %
- Nominal pick-up current per solenoid coil47 mA to 20 ms
- Nominal current with current reduction15.5 mA after 20 ms
