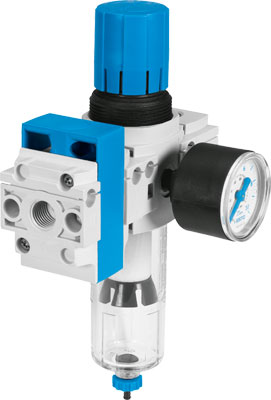

| Shipping date |
 View |
| Size |
Mini |
| Width |
88 mm |
| Exhaust-air function |
not throttleable |
| Series |
DB |
| Type of actuation |
manual |
| Actuator lock |
Padlock (optional)
Rotary knob with lock |
| Assembly position |
Vertical +/- 5° |
| Grade of filtration |
40 µm |
| Condensate drain |
manual rotary |
| Design structure |
On-off valve/filter regulator/distributor module |
| Max. condensate volume |
13 ml |
| Controller function |
Output pressure constant
with secondary exhaust
with return flow
Without primary pressure compensation |
| Pressure gauge |
with pressure gauge |
| Operating pressure |
1.5 ... 10 bar |
| Pressure regulation range |
0.5 ... 7 bar |
| Max. pressure hysteresis |
0.5 bar |
| Max. standard flow rate |
2,500 l/min |
| Standard nominal flow rate |
1,900 l/min |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:9:4] |
| Note on operating and pilot medium |
Lubricated operation not possible |
| Corrosion resistance classification CRC |
1 - Low corrosion stress |
| Storage temperature |
-5 ... 50 °C |
| Air purity class at output |
Compressed air in accordance with ISO8573-1:2010 [7:8:4] |
| Medium temperature |
-5 ... 50 °C |
| Ambient temperature |
-5 ... 50 °C |
| Product weight |
270 g |
| Mounting type |
Optional
Line installation
with through hole
With mounting bracket |
| Pressure gauge connection |
G1/8 |
| Pneumatic connection, port 1 |
G1/4 |
| Pneumatic connection, port 2 |
G1/4 |
| Pneumatic connection, port 3 |
G1/4 |
| Materials note |
Conforms to RoHS |
| Material seals |
NBR |
| Material on-off valve seals |
FPM |
| Material rotary knob |
POM |
| Material filter |
PE |
| Material housing |
PA-reinforced |
| Material Piston slide |
POM |
| Material bowl |
PC |
