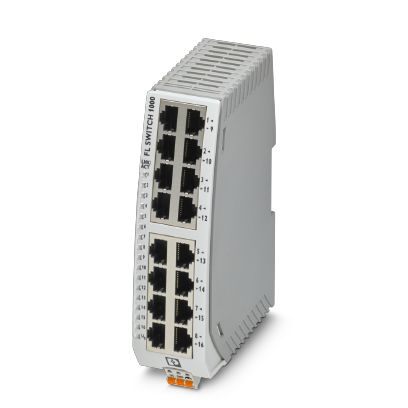

Country of origin TW (Taiwan)
Dimensions
Width 40 mm
Height 140.4 mm
Depth 92 mm
Note on dimensions 150 mm with connector
Ambient conditions
Degree of protection IP30
Ambient temperature (operation) -10 °C ... 60 °C
Ambient temperature (storage/transport) -40 °C ... 85 °C
Permissible humidity (operation) 5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport) 5 % ... 95 % (non-condensing)
Air pressure (operation) 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
Interfaces
Interface Ethernet (RJ45)
No. of ports 16 (RJ45 ports)
Note on the connection method Auto negotiation and autocrossing
Transmission physics Ethernet in RJ45 twisted pair
Transmission speed 10/100 Mbps
Transmission length 100 m (per segment)
Signal LEDs Data receive, link status
Function
Basic functions Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode
Additional functions Autonegotiation
MAC address table 8k
PROFINET conformance class Conformance-Class A
Status and diagnostic indicators LEDs: US, link and activity per port
Supply voltage
Supply voltage 24 V
24 V AC (50/60 Hz)
Residual ripple 3.6 VPP (within the permitted voltage range)
Supply voltage range 9 V DC ... 32 V DC
18 V AC ... 30 V AC (50/60 Hz)
Typical current consumption 68 mA
Max. current consumption 266 mA
Connection data
Connection method Push-in spring connection
Conductor cross section solid min. 0.2 mm²
Conductor cross section solid max. 2.5 mm²
Conductor cross section flexible min. 0.2 mm²
Conductor cross section flexible max. 2.5 mm²
Conductor cross section AWG min. 24
Conductor cross section AWG max. 12
Stripping length 10 mm
