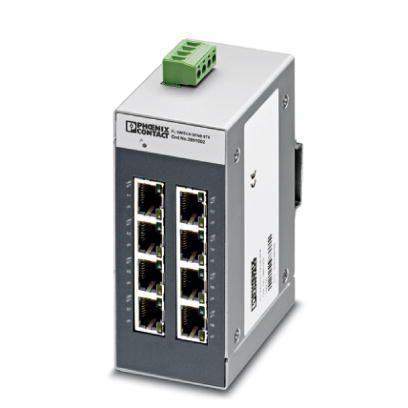

Dimensions
Width 50 mm
Height 110 mm
Depth 70 mm
Ambient conditions
Degree of protection IP20
Ambient temperature (operation) -10 °C ... 60 °C
Ambient temperature (storage/transport) -20 °C ... 85 °C
Permissible humidity (operation) 5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport) 5 % ... 95 % (non-condensing)
Air pressure (operation) 86 kPa ... 108 kPa (up to 1500 m above sea level)
Interfaces
Interface Ethernet (RJ45)
No. of ports 8 (RJ45 ports)
Note on the connection method Auto negotiation and autocrossing
Transmission physics Ethernet in RJ45 twisted pair
Transmission speed 10/100 Mbps
Transmission length 100 m (per segment)
Signal LEDs Data receive, link status
Function
Basic functions Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode
Additional functions Autonegotiation
MAC address table 2k
Status and diagnostic indicators LEDs: US, link and activity per port
Network expansion parameters
Cascading depth Network, linear, and star structure: any
Maximum conductor length (twisted pair) 100 m
Supply voltage
Supply voltage 24 V DC
Residual ripple 3.6 VPP (within the permitted voltage range)
Supply voltage range 9 V DC ... 32 V DC
Typical current consumption 140 mA (at US = 24 V DC)
Max. current consumption 380 mA (@9 V DC)
