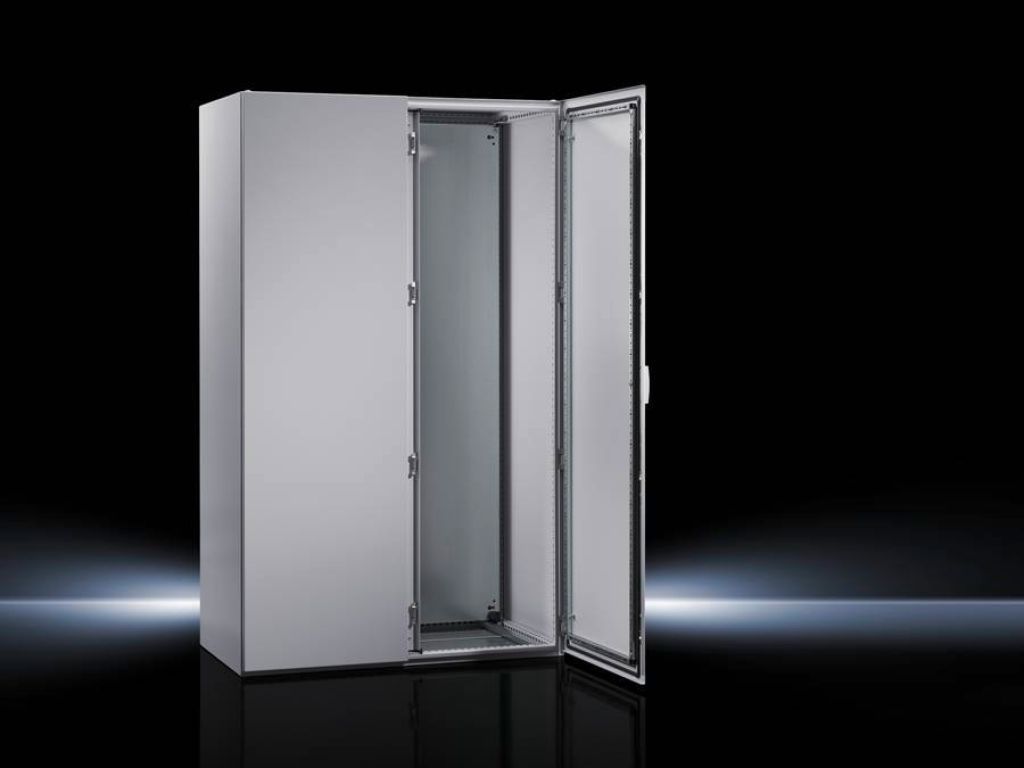

5843500 / H: 2000mm (78.74") W: 1200mm (47.24") D: 400mm (15.75")
Material Housing: Carbon steel 1.5 mm
Mounting plate: Carbon steel 3.0mm
Door: Carbon steel 2.0 mm
Rear wall: carbon steel 1.5 mm
Base plates: Carbon steel 1.5 mm
IK code IK10
Supply includes Supply includes: Mounting plate
Door(s)
Lock: 3 mm double-bit
Right-hand door catch on single-door enclosures may be swapped to the left
2 TS punched rails 18 x 38 mm
Base Plates
Housing solid top and sides
Rear panel detachable
Supply includes: Rear wall one-piece
Dimensions Height: 2000 mm (79 ")
Width: 1200 mm (47 ")
Depth: 400 mm (16 ")
Mounting plate Height: 1896 mm (75 ")
Width: 1099 mm (43 ")
Number of doors 2
Packaging unit 1 pc(s).
Weight/packaging unit 193 kg (425.5 lb.)
EAN 4028177666610
